发动机功率 | 巡航速度 |
35kw | 82 kts |
电动滑翔

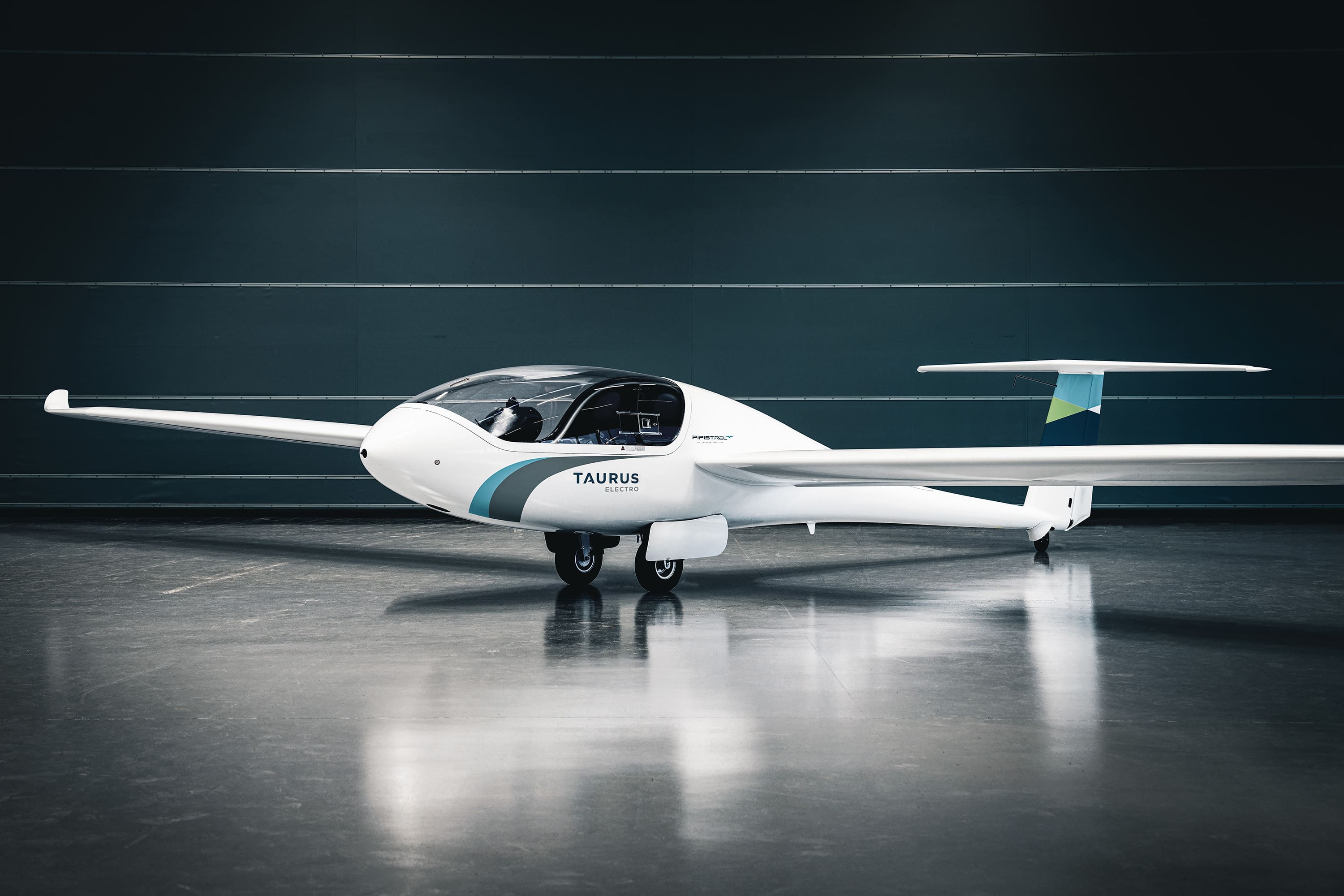

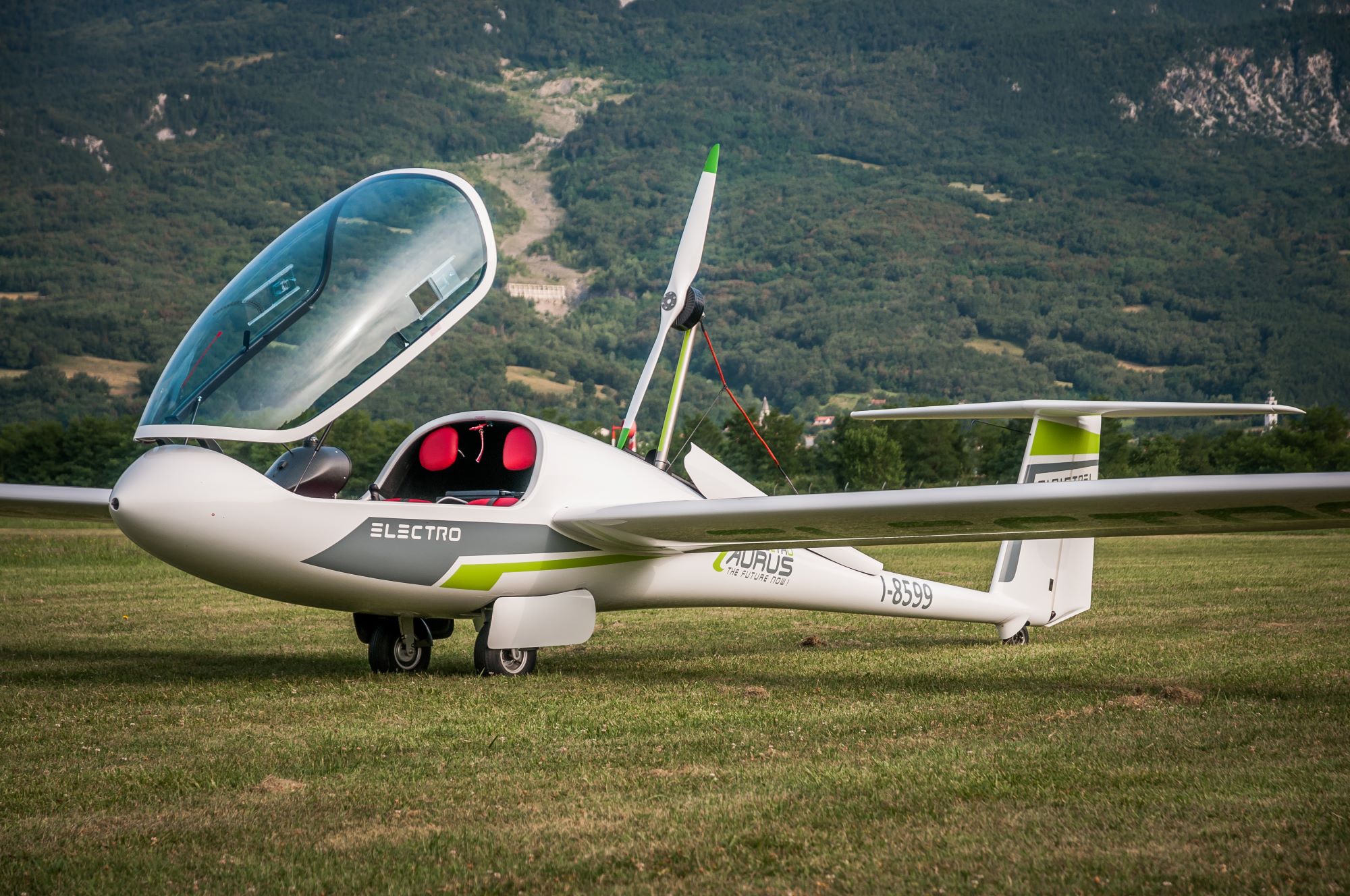

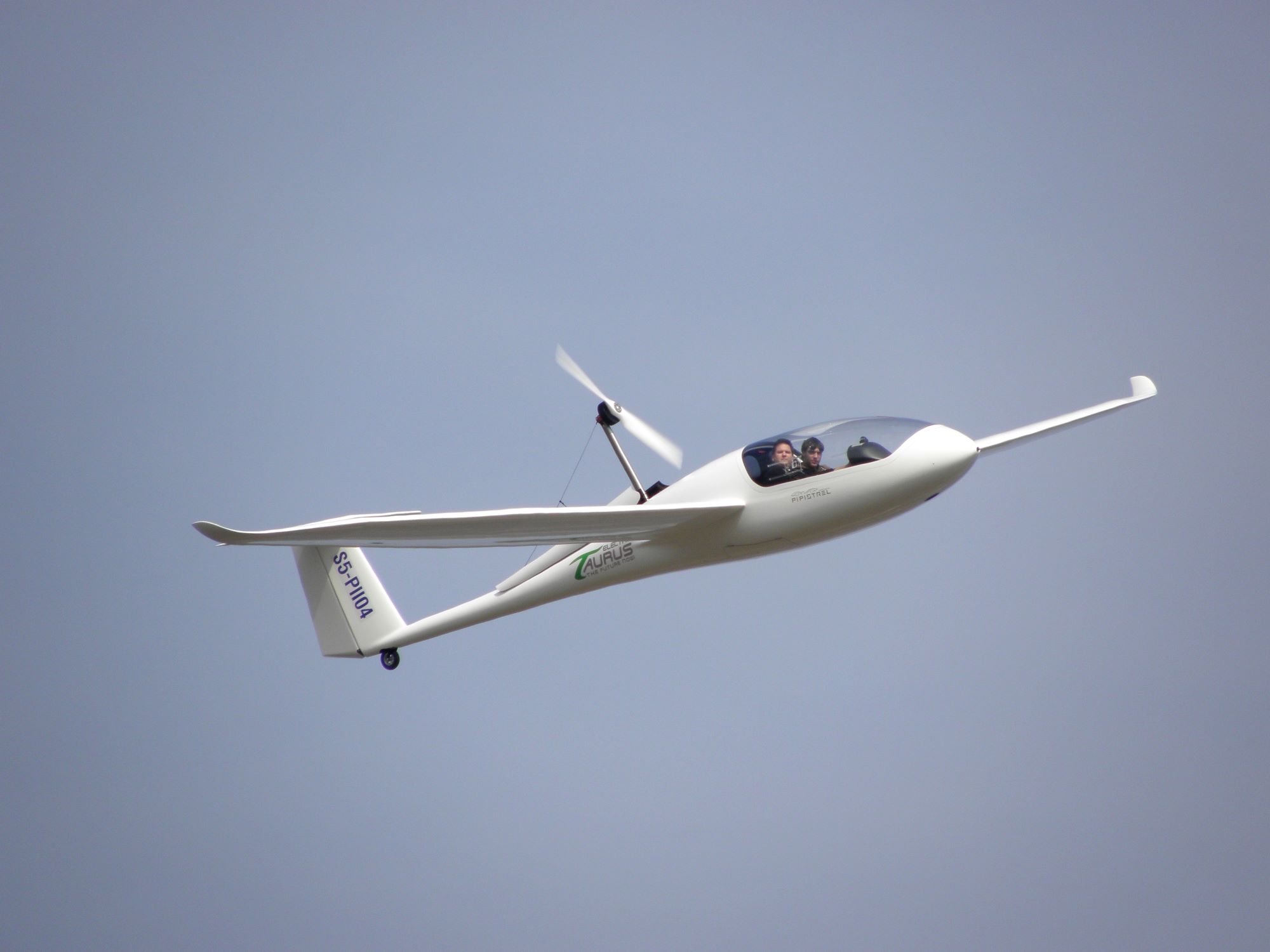

Taurus Electro 提供完全的自由度,是一款开创性的 2 座并排自发射滑翔机。凭借卓越的操控性、出色的滑行性能和宽敞的驾驶舱,Taurus Electro 已为您做好准备!得益于全电动 40 千瓦动力系统,Taurus Electro 可以在较短的跑道上运行,爬升速度更快,这代表着性能、安全性、功能性的飞跃,并且对飞行员友好。
不仅仅是一点创新!

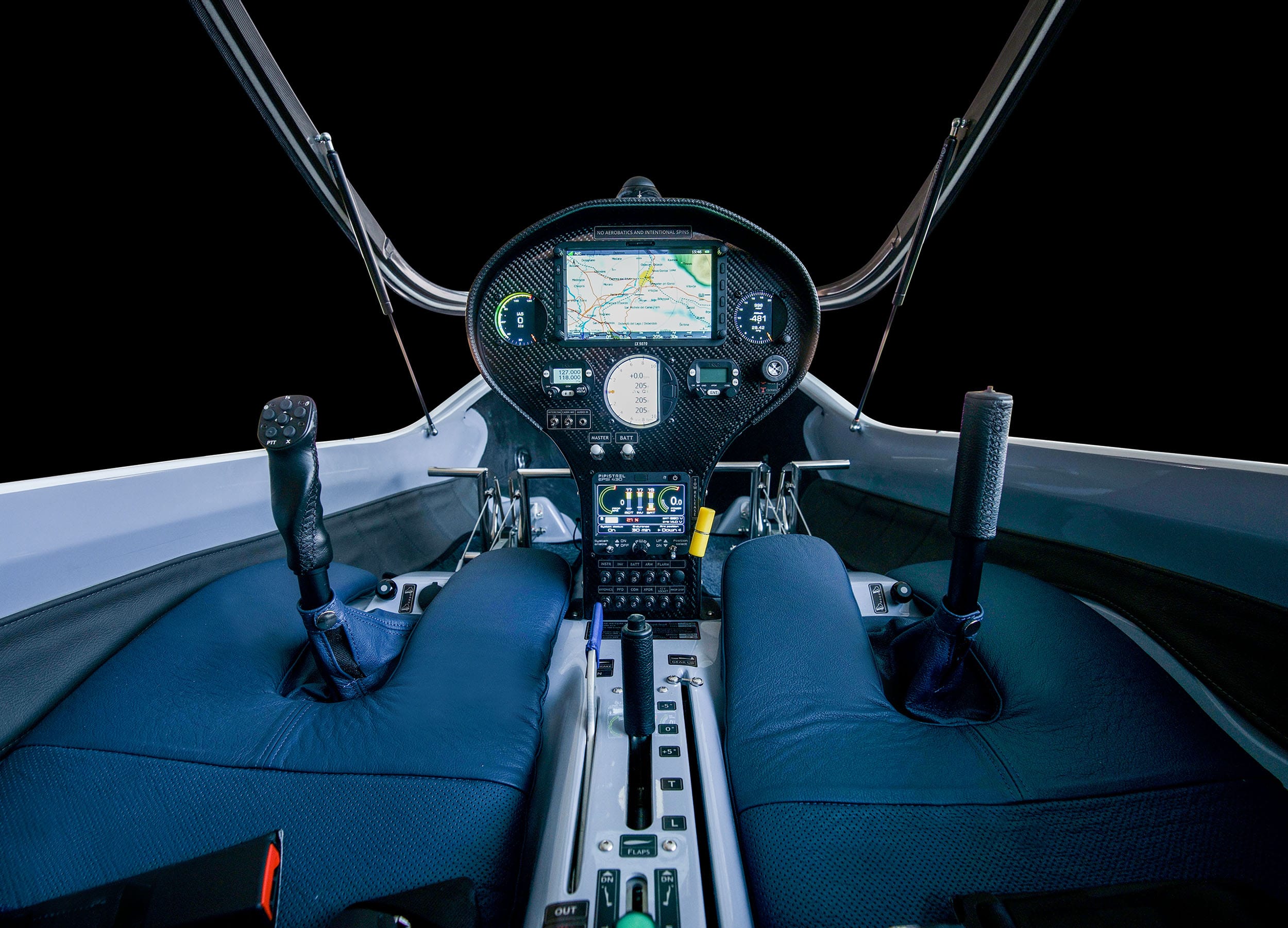

Taurus Electro 机上配备了完整的网络航空电子设备包,提供线传操纵动力总成管理和内置多层保护。内部开发的最先进的混合电池管理可提供更好的性能和更长的电池寿命,并能够监控电池状态和所有参数。
完整的零排放套件
Pipistrel 的太阳能拖车可以在不连接电网的情况下为 Taurus Electro 充电。太阳能拖车提供 1.5 千瓦的可用电力,可以在最偏远的地方为您的 Taurus Electro 充电。太阳能拖车是完美的伴侣,可让您免费、安静且零排放地充电。拖车还提供多个 12v 和 240v 电源插座以及集成的 3.6kw 蓄电池。
MODEL | TAURUS Electro |
ENGINE | Electric 40/30 |
max power | 40 KW 2 min/30 const |
PROPELLER – 2 blade | Pipistrel 1650 mm diam |
SIZES | |
wing span | 14.97 m |
length | 7.30 m |
height – propeller extended | 2.7 m |
wing area | 12.33 m2 |
rudder area | 0.9 m2 |
horizontal tail area | 1.36 m2 |
aspect ratio | 18,6 |
positive flaps | 0,+5,+9,+18 deg |
negative flaps | – 5 deg (up) |
center of gravity | refer POH |
WEIGHTS | |
empty weight | 306 kg with 20 Ah batteries |
minimum pilot weight (no front ballast) | 90 kg |
minimum pilot weight (with optional front ballast) | 69 kg |
max take off weight (MTOW) | 450 / 472.5 / 550 kg |
fuel tank capacity in the wing | N/A |
useful fuel | N/A |
LI-PO battery capacity | 20 Ah / 4.75 kWh (std) |
PERFORMANCES | |
stall with flaps | 63 km/h |
stall without flaps | 71 km/h |
manoeuvring speed | 163 km/h |
max speed with flaps down | 130 km/h |
max speed with airbrakes out | 225 km/h |
VNE | 225 km/h |
min.sink | 0.70 m/sec |
min.sink speed | 94 km/h |
max. sink with airbrakes | 5.5 m/sec |
best glide | 1:41 |
best glide ratio speed | 115 km/h |
best glide at 150 km/h | 1:32 |
max aerotow speed | 107 km/h |
45°-45° roll time | 3.5 sec |
take off run MTOW | 160 m |
take off over 15 m MTOW | 245 m |
best climb speed | 95 km/h |
max climb rate (MTOW) | 3.1 m/s |
service ceiling MTOW | 2.000 m AGL |
max load factor permitted (x1,8) | 5.33 G, -2.65 G |
design safety factors & tested | minimum 1.875 |
